Visual inspection of components with the DOBOT MG400 robot

Variobotic GmbH
Manufacturing
Assembly

Hardware Price: $19,867.35

Payload

750

g

Repeatability

0,05

mm

Precision

High

Automated quality control with VarioFeed

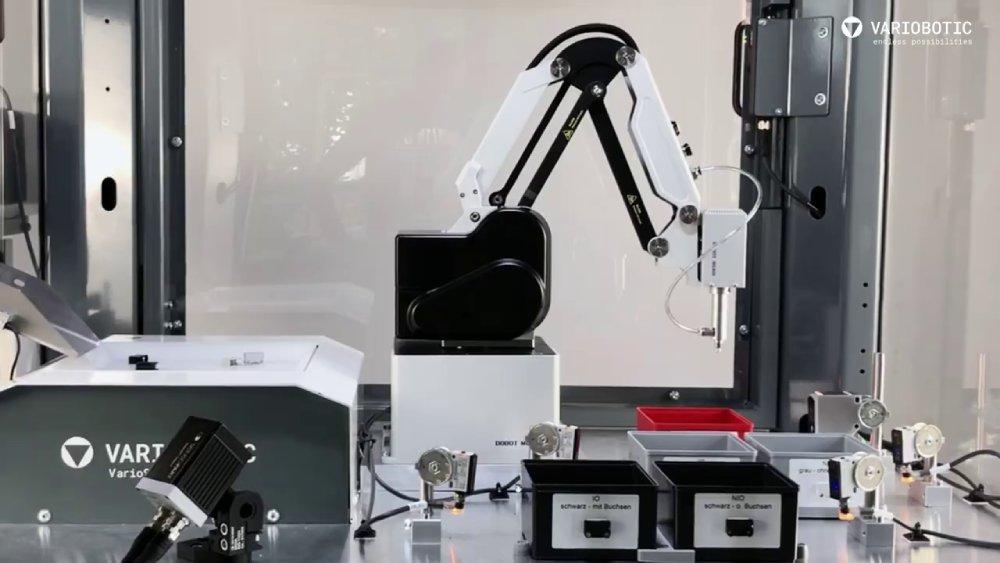

The VarioFeed solution developed by Variobotic consists of the industrial robot DOBOT MG400, the flexible component separator VarioShaker 270 and two image processing systems.

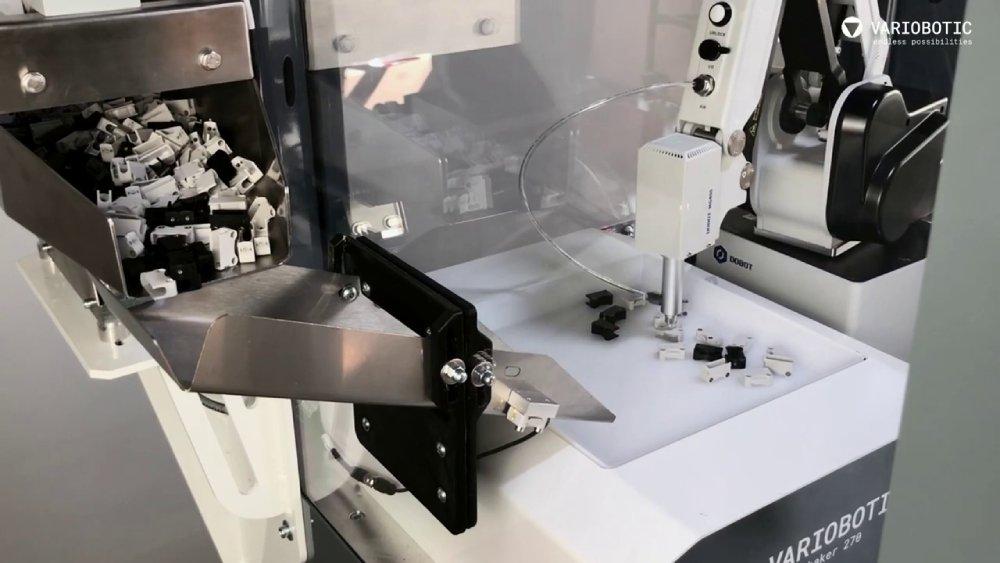

In the application example, sensor housings are placed onto the component separator through a supply hopper, where the components are provided to the industrial robot in the correct shape and position. After visual recognition of the component by a camera, the DOBOT MG400 can pick up the parts. The housing is then inspected via the second camera.

This bundle combines flexible feeding and separation as well as quality control in one solution. The DOBOT robot convinces with a speed of 300°/s and a repeatability of +-0.05mm.

3 Components

$19,867.35
